The Engineered Approach to Velocity Control in Abrasive Conveying Reliability

Why Component Hardness Alone Cannot Guarantee Uptime

In the world of high-abrasive material handling (mining, cement, and specialized minerals like Atomite), system reliability is not a feature; it's a non-negotiable requirement. While many suppliers focus on selling hardened components, engineers at Delta Ducon recognize that the root cause of failure is often not the component itself, but the uncontrolled velocity of the material stream.

A highly engineered system must achieve Dense Phase Conveying, characterized by high pressure and low velocity, to minimize particle impact and extend the life of the entire system. This is an integrated engineering feat, not a collection of parts.

The Critical Role of the Extreme Rotary Valve (XT/XL)

The first and most vulnerable point in any pneumatic pressure system is the airlock/rotary valve at the pick-up point. Its primary job is not just to meter material, but to maintain a tight air seal against system pressure (up to $9.0$ PSIG). Failure here leads to air leakage and uncontrollable, high velocity in the conveying line—a recipe for catastrophic wear.

Engineered for Extreme Abrasion and Seal Integrity

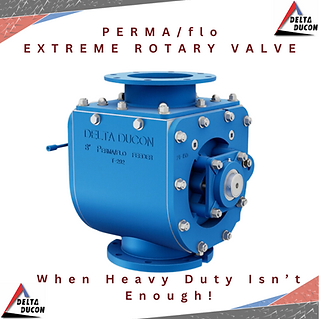

Delta Ducon's PERMA/flo XT/XL Extreme Rotary Valves are designed to maintain this seal integrity where other "heavy-duty" valves fail:

• P-33 Solid Alloy Construction: Unlike competitors who use surface hardening that can wear off, the XT/XL rotor and seal shoe are cast from P-33 chrome-iron alloy, yielding a solid, uniform hardness of 500-600 Brinell (BHN) throughout the wear components.

• Adjustable Rotor to Shoe Clearance: This is the key engineering differentiator. The rotor and wear shoe clearances are externally adjustable. As the valve naturally wears over time, engineers can field adjust the clearance in minutes while the valve remains in place. This ability to easily maintain the seal ensures the system's low velocity is preserved for the entire lifespan of the unit.

• Design for Flow: Enhancements like the XT series' increased throat size and ten-pocket rotor minimize bridging and increase pocket fill efficiency, guaranteeing a consistent, metered flow into the line.

System Integrity: Diverting Abrasive Materials Safely

The challenge of controlling velocity extends to multiple destination points (Storage Silo 1, 2, and 3). Traditional flap or plug diverters suffer massive wear in high-abrasion service.

Delta Ducon's engineered solution utilizes PERMA/flo II Knife Gate Diverter Valves. This system-level component addresses wear through an impingement design principle:

• Self-Lining Protection: The design uses a 10" x 45 degree PERMA/flo II Knife Gate Diverter that forces material to fill up in the closed leg, causing the material stream to impinge upon itself. This material build-up effectively creates a sacrificial wear surface of the product itself, protecting the 600 BHN induction-hardened body from direct abrasive wear.

• Modular Maintenance: This three-component design is modular, allowing the primary components to be accessed separately, drastically simplifying maintenance and reducing downtime.

The Final Step in Velocity Control: Pipe Expansion

Even with the most precise control at the pickup point, velocity peaks as the material reaches the destination bin. To maintain the low-velocity requirement and minimize terminal wear, the system design incorporates line expansion near the target.

In the case of this long conveying line, the line size is increased from 10" to 12" for the last 20 feet. This simple, but critical, design decision slows the air and material velocity at its highest point before it enters the Targetbox Silo Inlet, significantly reducing the impact and wear at the receiving equipment.

Conclusion: Engineered Solutions Outperform Components

A reliable pneumatic system for high-abrasive minerals requires more than just high-hardness steel. It demands an integrated, engineered approach where system control is achieved through:

1. Feed Control: Using the Extreme Rotary Valve to maintain the air seal and consistent metering.

2. Flow Control: Utilizing the PERMA/flo II Diverter Valve's self-impingement principle to minimize directional wear.

3. Terminal Velocity Control: Strategically expanding the pipe size to mitigate wear at the destination.




By focusing on these engineered solutions, Delta Ducon delivers systems that guarantee a predictable TCO, reduce catastrophic failure, and offer maximum uptime in the world’s most demanding industrial environments.
