Dense or Dilute? The Real Question for Abrasive Conveying is "What Does Your Job Demand?"

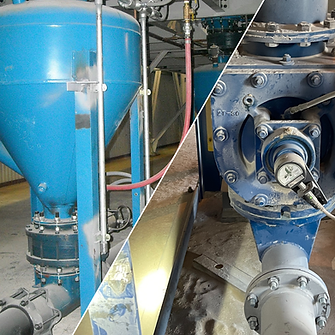

Dense phase pressure pot and dilute phase Rotary Airlock

When faced with the challenge of pneumatically conveying highly abrasive materials, a common and perfectly valid first question is: "Should I use dense phase or dilute phase?" It's a natural inclination to seek a definitive "better" option, especially given the notorious wear and tear associated with handling materials like clinker, fly ash, various ores, or even sharp sands.


However, the truth is more nuanced than a simple either/or. At Delta Ducon, with over a century of deep expertise in high-abrasive applications across industries from cement and mining to power and steel, we know that the "best" pneumatic conveying system isn't a pre-determined choice. It's a strategic decision driven entirely by the unique specifications and demands of your job.


One phase isn't inherently superior to the other across all abrasive applications. Instead, optimal performance, minimal wear, and maximum efficiency hinge on a meticulous evaluation of several critical factors. Our role is not to push one technology over the other, but to engineer the precise solution that delivers the most robust and cost-effective performance for your specific abrasive material and operational objectives.


Understanding the Fundamentals: Dense vs. Dilute Phase


Before diving into selection criteria, let's briefly define the two primary pneumatic conveying modes:


Dilute Phase Conveying: This mode uses a high volume of air at lower pressures to suspend and carry particles within the air stream. Material is dispersed throughout the conveying line. While generally simpler and lower initial cost for many materials, the higher velocities inherent in dilute phase can lead to significant wear when handling highly abrasive materials.

Dense Phase Conveying: This mode uses a lower volume of air at higher pressures to push slugs or plugs of material along the pipeline. The material-to-air ratio is much higher, resulting in significantly lower conveying velocities. This reduced velocity is often highly desirable for minimizing abrasion.


The Abrasive Conundrum: Why Velocity Matters, But Isn't the Only Factor


The immediate thought when dealing with abrasives is usually: "Lower velocity means less wear, so dense phase is always better." And while it's true that lower conveying velocities are generally beneficial for reducing erosive wear, this isn't the sole determinant of system success or optimal choice.

Here's why a blanket recommendation for one phase over the other is an oversimplification, and why the "specs of the job" are paramount:


Material Characteristics are King:

  • Particle Size and Shape: Fine, light, highly abrasive powders (e.g., certain types of fly ash) can often be conveyed effectively and economically in dilute phase if the system is correctly designed with specific wear-resistant components. While other abrasive particles may need to utilize a Dense Phase.

  • Friability/Breakage: If material degradation is also a concern alongside abrasion (e.g., conveying a granular abrasive that shouldn't break down), dense phase's gentler handling is a clear advantage. If breakage isn't an issue, this factor becomes less critical.

  • Abrasiveness Index: While a material might be classified as "abrasive," the degree of its abrasiveness varies. Our engineers use specific indices and test data to quantify this, which directly informs the phase selection and component material choice.


Conveying Distance and Throughput Requirements:

  • Short Distances/Low Throughput: Depending on the conveying distances and throughputs of some abrasives, a well-engineered dilute phase system with specialized wear components (like our Perma/flo™ piping) might be a more capital-efficient solution, provided wear rates remain acceptable.

  • Longer Distances/High Throughput: For significant distances and high throughputs of highly abrasive materials, the energy efficiency and significantly reduced wear offered by dense phase often make it the more economical long-term choice, despite potentially higher initial investment in compressors and pressure vessels.


Pressure vs. Volume Trade-offs:

  • Dense Phase: Requires higher pressures (often from compressors) and lower air volumes. This can mean more robust piping and vessels designed for pressure, potentially higher capital cost for the air source, but lower ongoing energy costs related to air volume.

  • Dilute Phase: Requires higher air volumes (often from blowers) at lower pressures. This can mean larger diameter piping for the same throughput to maintain acceptable velocities, and potentially higher energy costs associated with moving large volumes of air. The balance between air consumption and wear is a critical consideration.


Operational Flexibility and Control: Some processes benefit from the continuous, steady flow of dilute phase. Others, particularly those requiring precise batching or feeding into pressurized environments, are better served by the pulsed delivery of dense phase systems. Our Blending system, using Rotary Feed technology, exemplifies how precision feeding can be achieved, even with challenging blended abrasive materials.


Existing Infrastructure and Budget: Sometimes, an existing plant's air supply, space constraints, or budget limitations can influence the practical viability of one system over another, even if it's not the absolute "ideal" from a pure wear perspective. Our engineers work within these real-world constraints to deliver the best possible outcome.


Delta Ducon's Approach: Engineering the Right Solution


At Delta Ducon, we don't start with a preconceived notion of "dense is always better for abrasives" or vice versa. We start with your job. Our century of experience has taught us that the most successful and durable pneumatic conveying systems for high-abrasive materials are the result of a meticulous, data-driven engineering process:

  • Material Analysis: We thoroughly analyze your specific abrasive material's properties – particle size distribution, hardness, shape, bulk density, and abrasiveness index.

  • Application Assessment: We delve into your operational requirements: desired throughput, conveying distance, available space, entry/exit conditions, and any specific process considerations.

  • Holistic System Design: Only after this deep understanding do we recommend the optimal conveying phase and tailor every component – from our legendary Perma/flo™ Abrasion Resistant Pipe & Elbows to Extreme Duty Rotary Valves – to meet those specific demands. We consider not just the conveying line, but the entire system, including air supply, filtration, and discharge.

  • Long-Term Value: Our goal is always to deliver a solution that provides the lowest total cost of ownership. This means minimizing not only initial capital outlay where appropriate, but more importantly, drastically reducing ongoing maintenance, replacement parts, and lost production due to wear.


Whether your application calls for the gentle, wear-reducing efficiency of dense phase, or a meticulously engineered dilute phase system leveraging our advanced wear-resistant components like Perma/flo™ to deliver reliable performance, Delta Ducon has the expertise, the technology, and the proven track record.

Don't settle for a one-size-fits-all answer to your abrasive conveying challenges. Demand a solution truly engineered for your job.


To determine the ideal pneumatic conveying system for your highly abrasive material, contact the experts at Delta Ducon today. Let's discuss your specific needs and build a system that defies wear and delivers lasting performance.
